3D View tools

The 3D view has a hidden toolbar in the top left corner containing different tools to work on the site data.

Information

This tool is selected by default. Its purpose is to select a data element and offer information about it. The selected element can be a point cloud or a vector feature.

Measurements

The Measurement tool is located in the 3D View toolbar:

This tool includes modes for Distance, Area, and Elevation measurements. To measure, simply click on points in the point cloud to define a line or polygon. To finish, double-click to confirm the last point or use the "Finish Measurement" button, or press ESC.

General tips for using Collage Web’s measurement tools:

• You can navigate (zoom, rotate, pan) while selecting points, allowing you to adjust the view without canceling your measurement.
• A blue circle cursor indicates the point currently available for selection.
• If the circle doesn’t appear or you can’t select points, this may be due to using a hybrid laptop or touch-enabled device. In this case, you need to disable touch events.
• Points closer to the camera are selected in preference to farther points. If you’re unsure of a point’s distance, zooming or rotating the view can help clarify its position.

In Distance Mode, the tool reports the length of each segment in the 3D view and the total distance in the Measurement tool panel.

You can change the units used for distance measurements in the Preferences menu.

In Area Mode, the tool calculates the total area in the 3D view and in the Measurement Tool panel. The area units can also be adjusted in Preferences.

There is an option to perform 2D area measurements by considering the area as flat.

Similarly, you can select a polygon feature in the 3D view, then use the "Show as Measure" button to calculate its area.

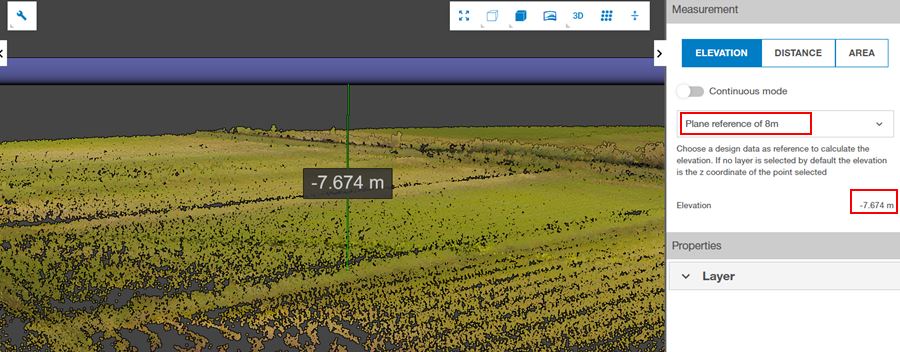

In Elevation Mode, the tool measures the height difference between the selected point in the point cloud and a chosen reference plane, or it can directly retrieve the altitude of the point within the project.
